Experimental Campbell diagrams¶

This capability is part of QF Solver 0.2.11. Campbell maturity remains EXPERIMENTAL, independently of package publication.

The campbell route orchestrates a set of single-speed rotating_modal analyses and associates their complex modes. It is experimental and limited to the same straight, collinear BEAM2 shaft and centered rigid axisymmetric disk scope documented for rotating modal analysis. Each speed must be supplied explicitly in strictly increasing rad/s. The sweep does not create a speed grid, change the model, or introduce a new physical formulation.

Tracking and ambiguity¶

Modes are associated with a complex, Hermitian mass-weighted MAC and a global one-to-one assignment. Eigenvector phase and nonzero scaling do not change the MAC. Near-degenerate modes are compared as mass-weighted subspaces; an individual vector identity is not claimed inside a degenerate eigenspace. When the evidence does not support one clear association, the result retains candidate matches, a branch gap, or an explicit ambiguity. The plot is only a projection of the structured result and cannot repair or decide branch continuity.

Transverse polarization can be reported as forward, backward, weakly polarized, undefined, or inconsistent when the mode shape supports that classification. It is not inferred at zero speed or when stations disagree.

Reading the diagram¶

A Campbell diagram plots natural frequency against signed spin speed. A missing or ambiguous point remains a visible gap; the plot does not interpolate through it. An optional 1x line is abs(Omega)/(2*pi). An intersection is only a frequency coincidence or candidate critical-speed location within the linear modal model. It is not a forced-response amplitude, an unbalance response prediction, an operational-risk assessment, or evidence of instability.

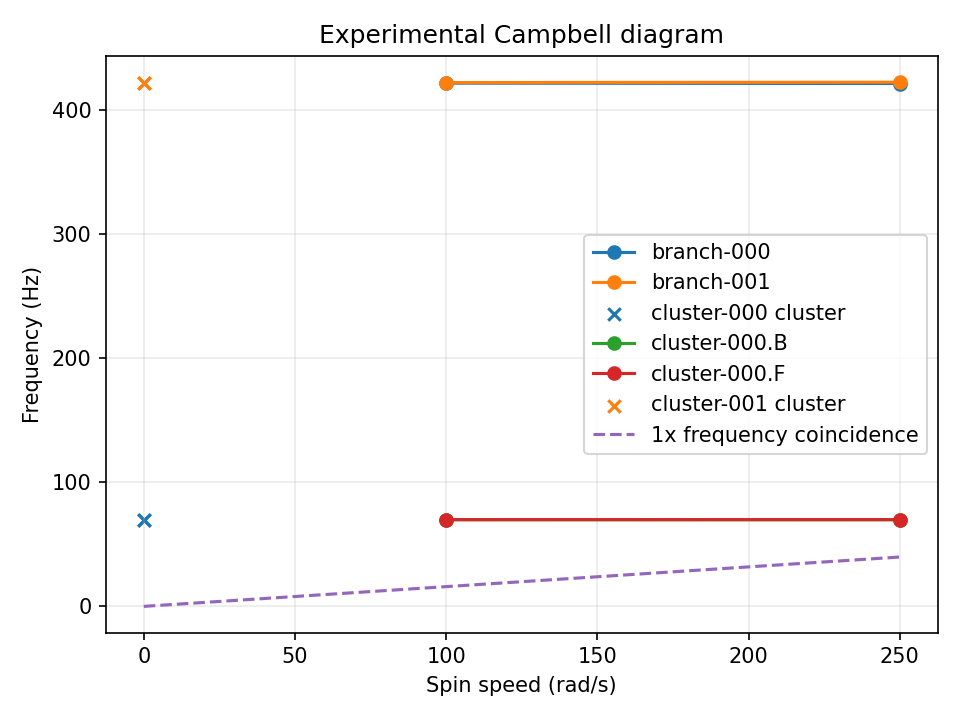

The following reproducible internal BEAM2/disk example shows the sampled branches and the optional 1× line. A missing point at 100 rad/s is an explicit tracking ambiguity for the high-frequency pair, not an interpolated or forced connection. The figure is a projection; the structured record is authoritative.

At 100 rad/s, the high-frequency pair remains ambiguous. The tracker preserves the ambiguity rather than forcing branch continuity.

Experimental Campbell diagram for the frozen WP06 BEAM2 shaft and centered-disk case. The high-frequency branch gap at 100 rad/s is retained because the tracker does not claim an unambiguous association.

Figure: internal convergence evidence only, not independent physical validation. The structured record is qualification/0_2_11/gyro_06_beam2_convergence.json; the model and thresholds are defined in the frozen WP06 case contract.

The initial implementation uses a serial dense SciPy QEP at every speed and does not support distributed shaft gyroscopic terms, speed-dependent stiffness/mass/bearing properties, general damping, centrifugal stiffening, unbalance forcing, contact, nonlinear rotor response, PETSc, SLEPc, sparse QEP, or MPI. GYRO-05 supplies independent analytical tracking evidence; GYRO-06 is internal mesh-convergence evidence, not independent physical validation. Both the numerical result and maturity decision remain distinct; maturity stays EXPERIMENTAL.
