Couverture technique regeneree

Cette table ferme la lacune documentaire en distinguant une preuve disponible d'un ecart V&V documente. Un ecart documente n'est jamais transforme en validation mecanique.

• couples element-analyse declares : 50 ;
• contrats de chargement : 10 ;
• methodes correlees : 12 ;
• ecarts V&V explicites : 0.

Contrats de chargement

Famille	Actions supportees	Documentation
TET4	nodal_load, pressure, surface_traction, gravity, body_force	docs/elements/tet4/matrices_charges.md
TET10	nodal_load, pressure, surface_traction, gravity, body_force	docs/elements/tet10/matrices_charges.md
MITC4	nodal_load, pressure, surface_traction, edge_traction, gravity, body_force	docs/elements/mitc4/matrices_charges.md
MITC3	nodal_load, pressure, surface_traction, edge_traction, gravity, body_force	docs/elements/mitc3/matrices_charges.md
BEAM2	nodal_load, beam_distributed	docs/elements/beam2/interpolation_matrices.md
SPRING_MASS	nodal_load, grounded_spring, concentrated_mass	docs/elements/entites_discretes.md
ORTHOTROPIC_SOLID	nodal_load, pressure, surface_traction, gravity, body_force	docs/verification/orthotropic_static_extended_owner_review.md
CONTACT	contact_normal, coulomb_regularized	docs/elements/contact_sans_frottement.md
HEX8	nodal_load, pressure, surface_traction, gravity, body_force	docs/verification/qf_solver_0_2_3_alpha_hex8_release_gate.md
HEX20	nodal_load, pressure, surface_traction, gravity, body_force	docs/verification/qf_solver_0_2_3_alpha_hex20_release_gate.md

Couples element-analyse et oracles

Couple	Statut mecanique conserve	Oracle	Etat de preuve	Conclusion bornee
TET4 / linear_static	stable	analytical	available	Affine patch, traction/compression, pressure, body force, membrane and Saint-Venant torsion.
TET4 / modal	stable	code_aster	available	Eigen residuals, first-mode oscillator reduction and same-mesh Code_Aster TETRA4 modes were accepted by the Owner on 2026-08-02.
TET4 / transient_newmark	stable	code_aster	available	Closed-form first-mode response, energy invariant and same-time-grid Code_Aster TETRA4 history were accepted by the Owner on 2026-08-02.
TET4 / harmonic	stable	code_aster	available	Static limit, resonance checks and same-frequency-grid Code_Aster TETRA4 response were accepted by the Owner on 2026-08-02.
TET4 / material_nonlinear_static	owner_accepted_experimental_bounded_use	analytical	available	Uniaxial J2 path and CalculiX comparison; bounded small-strain scope.
TET4 / geometric_nonlinear_static	research	code_aster	available	Total-Lagrangian structural paths correlated with Code_Aster within the reviewed scope.
TET10 / linear_static	stable	internal_reference	available	Affine, bending, torsion, curved geometry and h-convergence evidence; same-mesh external linear TET10 static correlation remains recommended.
TET10 / modal	stable	analytical	available	Consistent mass, modal residuals and bending mode convergence.
TET10 / transient_newmark	stable	code_aster	available	Internal first-mode response and a structural time-step study are complemented by the same-mesh Code_Aster TETRA10 Newmark history; accepted by the Owner on 2026-08-02.
TET10 / harmonic	stable	code_aster	available	Static limit, resonance checks, spatial frequency convergence and a same-mesh Code_Aster TETRA10 sweep were accepted by the Owner on 2026-08-02.
TET10 / material_nonlinear_static	owner_accepted_experimental_bounded_use	code_aster	available	The straight-bar monotone TET10/TETRA10 correlation was accepted by the Owner for experimental internal use. A re-entrant combined-load campaign also passes automatically, but its Owner review remains open; general maturity stays experimental.
MITC4 / linear_static	stable	code_aster	available	Patch, locking, Cook, Scordelis, pinched cylinder and same-mesh conical-cutout correlations; Code_Aster closes the resultant check.
MITC4 / modal	stable	code_aster	available	Consistent mass and ten-mode Code_Aster correlation.
MITC4 / transient_newmark	stable	analytical	available	Exact modal oscillator is the accepted temporal oracle; refined external structural correlation remains recommended.
MITC4 / harmonic	stable	published_benchmark	available	NAFEMS/theory and direct/modal-superposition checks within the reviewed band.
MITC4 / laminate_linear_static	stable	code_aster	available	ABD, ply stresses and bounded curved laminate comparisons; NAFEMS R0031 is the controlled external reference.
MITC4 / laminate_dynamic	stable	code_aster	available	Planar symmetric four-ply modal/Newmark/harmonic use is Owner-accepted as experimental and bounded. Dynamic curved shells, non-symmetric coupling, damage and delamination remain excluded; the 10 000 QUAD4 modal reservation remains open.
MITC3 / linear_static	stable	code_aster	available	Membrane, bending, hemisphere, Scordelis and pinched-shell evidence; active Code_Aster archive replaces obsolete versioned folder aliases.
MITC3 / modal	stable	code_aster	available	Modal invariants, free-free modes, curved-shell h-refinement, eigsh, same-mesh Code_Aster DKT correlation and dedicated 8x2/16x4/24x6 refinement are available; stable promotion remains subject to Owner review.
MITC3 / transient_newmark	stable	code_aster	available	First-mode time-history, energy, curved-shell time-step convergence, same-mesh Code_Aster DKT history and dedicated 8x2/16x4/24x6 refinement are available; stable promotion remains subject to Owner review.
MITC3 / harmonic	stable	code_aster	available	Static limit, resonance, curved-shell broadband stress output, same-mesh Code_Aster DKT sweep and dedicated 8x2/16x4/24x6 refinement are available; stable promotion remains subject to Owner review.
MITC3 / laminate_linear_static	owner_accepted_experimental_bounded_use	code_aster	available	The flat symmetric [0/90/90/0] affine membrane patch is correlated with Code_Aster. The separate curved projected static scope is Owner-accepted with recommendations.
MITC3 / laminate_dynamic	owner_accepted_experimental_bounded_use	code_aster	available	Planar symmetric [0/90/90/0] modal/Newmark/harmonic responses are externally correlated on the same TRIA3 mesh with Code_Aster DST. Curved projected orientation remains outside the dynamic scope.
MITC3 / laminate_linear_static_curved	owner_accepted_experimental_bounded_use	code_aster	available	The Owner accepted the same faceted curved geometry with Code_Aster DST/TRIA3 and projected global reference vector as an experimental bounded static scope with recommendations. Ply stress, S13, damage, delamination and curved dynamic use remain outside the evidence.
MITC3 / laminate_dynamic_thin_planar	stable	internal_reference	available	The stable declaration is documented for the thin planar symmetric laminate only; automated dynamic evidence and the pending Owner review remain traceable, while curved, non-symmetric, damped and damaged use stays excluded.
MITC3 / laminate_static_curved_mixed_transverse	stable	internal_reference	available	The stable declaration is limited to the documented faceted curved mixed/transverse sub-domain; the axial-complete observable remains bounded and no general curved-laminate extrapolation is claimed.
BEAM2 / linear_static	stable	analytical	available	Timoshenko closed form and Code_Aster POU_D_E test route.
BEAM2 / modal	stable	code_aster	available	Six-mode axial and slender-transverse comparisons were accepted by the Owner on 2026-08-02.
BEAM2 / transient_newmark	stable	code_aster	available	Same mesh/time-grid axial and slender-transverse histories were accepted by the Owner on 2026-08-02.
BEAM2 / harmonic	stable	code_aster	available	Same-mesh axial and slender-transverse frequency responses were accepted by the Owner on 2026-08-02.
SPRING_MASS / linear_static	stable	code_aster	available	Grounded spring displacement.
SPRING_MASS / modal	stable	code_aster	available	Single-degree-of-freedom frequency is externally correlated and was accepted by the Owner on 2026-08-02.
SPRING_MASS / transient_newmark	stable	code_aster	available	Same time-grid transient response is externally correlated and was accepted by the Owner on 2026-08-02.
SPRING_MASS / harmonic	stable	code_aster	available	Same frequency-grid response is externally correlated and was accepted by the Owner on 2026-08-02.
CONTACT / linear_static	owner_accepted	code_aster	available	Bounded small-sliding normal-contact scope.
CONTACT / frictional_static	experimental	code_aster	available	Saturated sliding is correlated; adhesion remains non-comparable.
MITC4 / orthotropic_homogeneous_ply	stable	internal_reference	available	The stable declaration is limited to the homogeneous orthotropic one-ply shell domain and documented material orientations; it is not a ply-by-ply composite qualification and curved harmonic diagnostics remain excluded.
ORTHOTROPIC_SOLID / linear_static	stable	internal_reference	available	TET4/TET10 homogeneous orthotropic static behavior is covered by the controlled review and external-correlation test route; the scope excludes ply-by-ply composites, damage and singular stress acceptance.
ORTHOTROPIC_SOLID / modal	stable	internal_reference	available	The stable declaration is limited to the documented homogeneous orthotropic modal domain with the recorded mass and orientation conventions; nonlinear, damaged and ply-by-ply composite behavior remain excluded.
ORTHOTROPIC_SOLID / transient_newmark	stable	internal_reference	available	The stable declaration is limited to the documented homogeneous orthotropic Newmark domain with the recorded time-step and mass assumptions; nonlinear, damaged and ply-by-ply composite behavior remain excluded.
HEX8 / linear_static	accepted_for_release_0_2_3	internal_reference	available	HEX8 linear static release scope is covered by the internal campaign and bounded Code_Aster comparison; nonlinear, reduced-integration and large-scale claims remain excluded.
HEX8 / modal	accepted_for_release_0_2_3	internal_reference	available	HEX8 modal support is accepted only in the documented bounded internal domain; it is not a general large-scale or externally correlated modal qualification.
HEX8 / transient_newmark	accepted_for_release_0_2_3	internal_reference	available	HEX8 Newmark support reuses the common dynamic path and is accepted for the recorded bounded release scope; nonlinear dynamics and large-scale extrapolation remain excluded.
HEX8 / harmonic	accepted_for_release_0_2_3	internal_reference	available	HEX8 harmonic support is covered through the common analysis/backend contract in the bounded release domain; damping, nonlinear and multi-million-DOF claims are excluded.
HEX8 / material_nonlinear_static	owner_accepted_experimental_bounded_use	code_aster	available	HEX8 J2 is accepted only for the bounded one-element affine RQ-G08 correlation with Full Newton; multi-element, cyclic, physical-validation, contact and large-deformation claims remain excluded.
HEX20 / linear_static	accepted_for_release_0_2_3	internal_reference	available	HEX20 linear static release scope is covered by the internal campaign and bounded Code_Aster comparison; reduced integration, contact and large-scale claims remain excluded.
HEX20 / modal	accepted_for_release_0_2_3	internal_reference	available	HEX20 modal support is accepted in the documented bounded domain with external static-oriented comparisons; general large-scale modal qualification is not claimed.
HEX20 / transient_newmark	accepted_for_release_0_2_3	internal_reference	available	HEX20 Newmark support uses the common dynamic path and is accepted for the recorded bounded release scope; nonlinear dynamics and external dynamic correlation remain excluded.
HEX20 / harmonic	accepted_for_release_0_2_3	internal_reference	available	HEX20 harmonic support is covered through the common analysis/backend contract in the bounded release domain; nonlinear, damping and large-scale claims remain excluded.
HEX20 / material_nonlinear_static	owner_accepted_experimental_bounded_use	internal_reference	available	HEX20 J2 is retained as bounded experimental use only; the evidence does not qualify general plasticity, contact, damage or large-deformation behavior.

Correlation des methodes

Methode	Base de comparaison	Preuve
direct	assembled residual and energy balance	tests/unit/test_solver.py
cg	direct sparse solution	tests/unit/test_solver.py
minres	direct sparse solution	tests/unit/test_solver.py
gmres	direct sparse solution	tests/unit/test_solver.py
bicgstab	direct sparse solution	tests/unit/test_solver.py
modal	eigen residual, M/K orthogonality and analytical/external frequencies	tests/unit/test_analysis_features.py
newmark	closed-form oscillator, energy and external histories	tests/unit/test_analysis_features.py
harmonic	zero-frequency static limit, phase and external sweeps	tests/unit/test_analysis_features.py
newton_j2	uniaxial return mapping and external material paths	tests/verification/test_j2_material_vnv.py
arc_length	elastica reference; structural breadth remains experimental	tests/unit/test_elastica_reference.py
total_lagrangian	Code_Aster and CalculiX structural paths	qualification/reviews/tet4_total_lagrangian_structural_v2_2026-07-18.json
large_model	SciPy/PETSc small-model equivalence and MPI diagnostics	tests/integration/test_large_model.py

Vues comparees et convergences

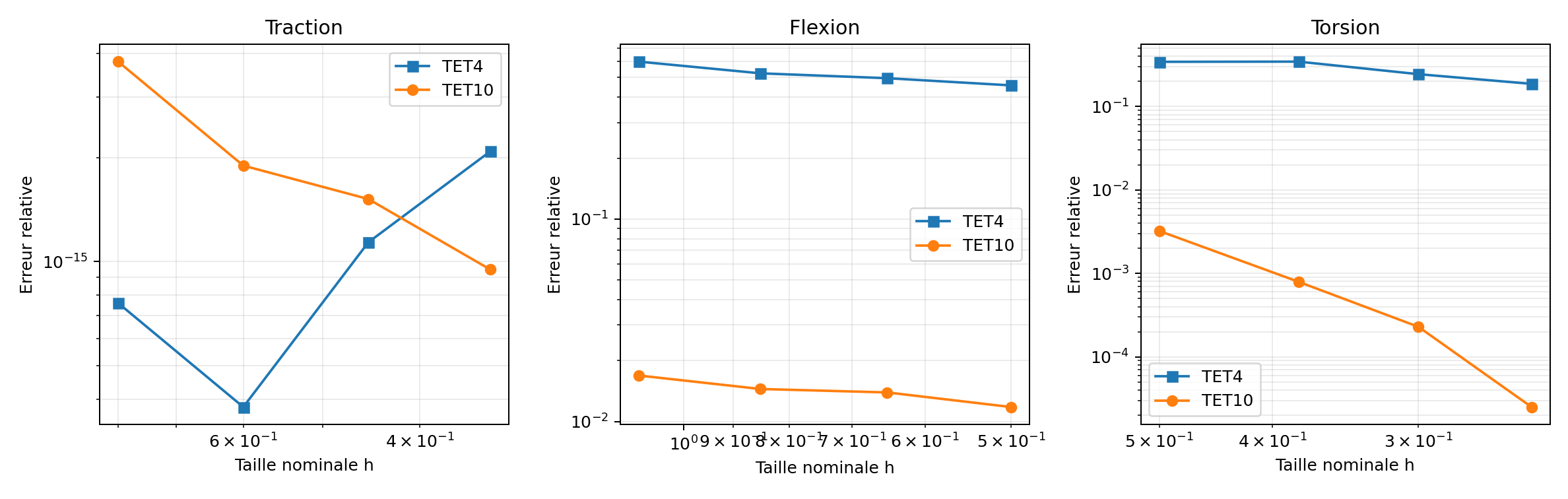

Convergence structurelle TET10. Empreinte SHA-256 : 577d9384ca2c54d84af899fe6355c9453899d6e5a675f51b6b8dafa16fee91bd.

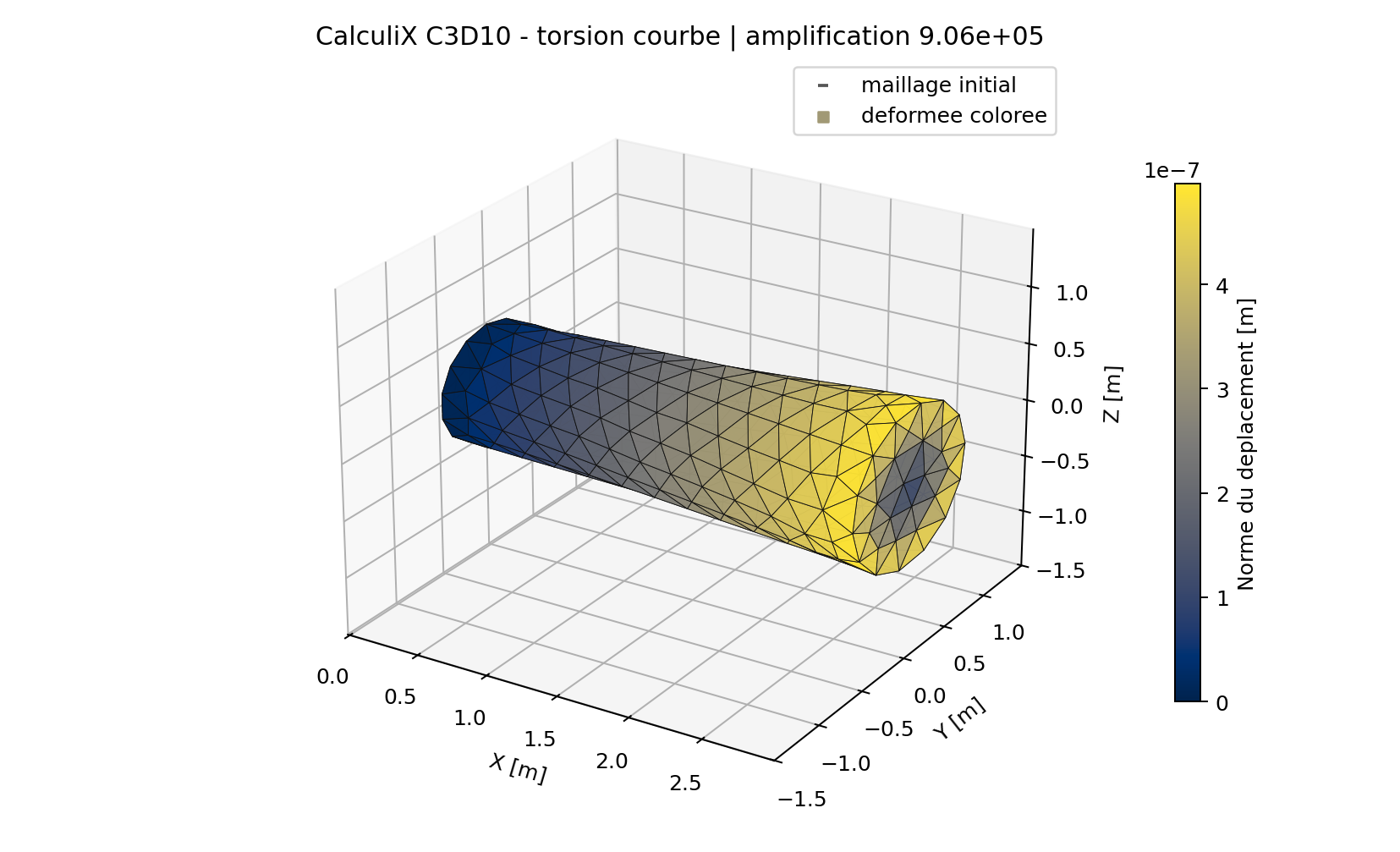

Deformee CalculiX C3D10 de reference. Empreinte SHA-256 : ce463693e78cc14e99ccd8a20b665f2476925cd2d94329072ddfc5393b32ce02.

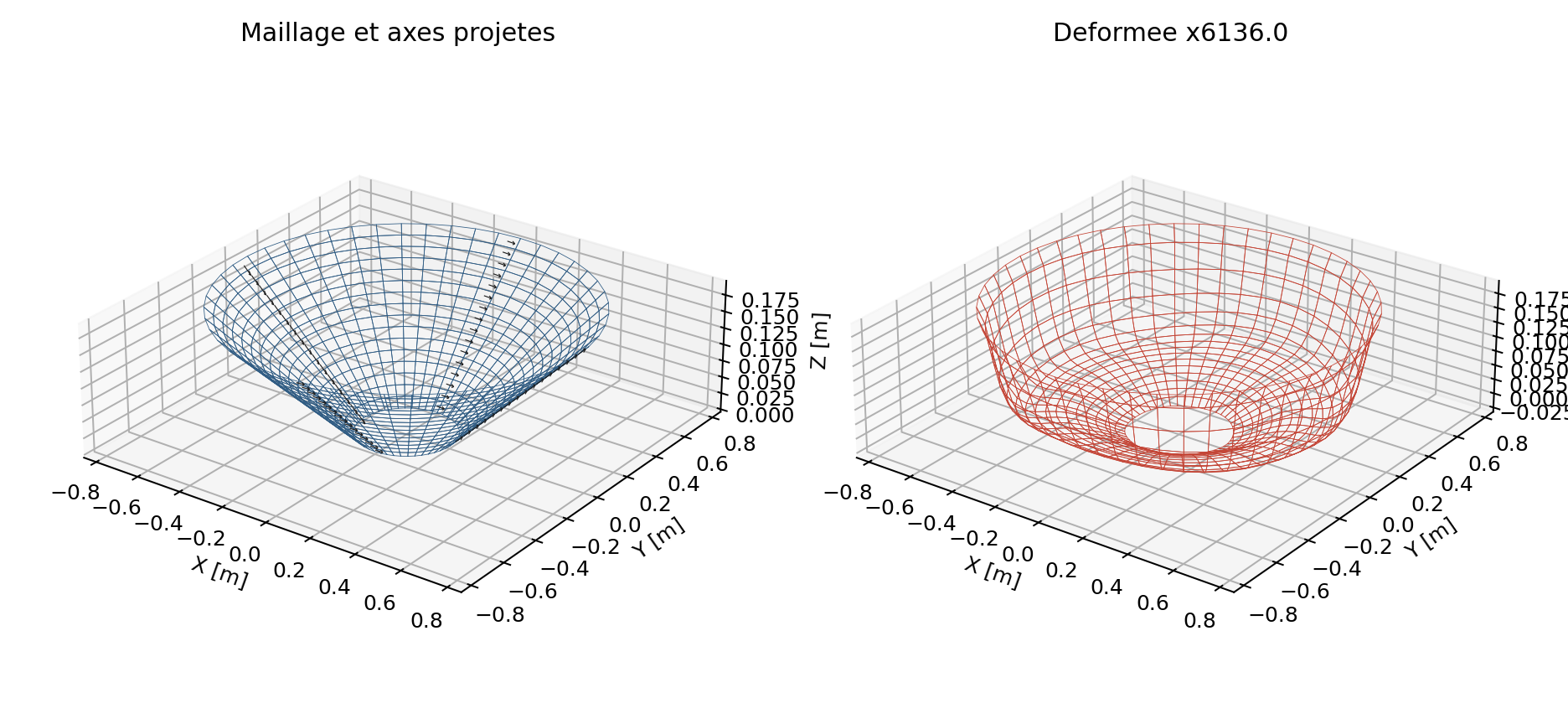

Panneau conique ajoure QF_solver. Empreinte SHA-256 : 0a80a6ed13678f33811c20dc69514063212e78573a34ce43ec78855ffb7c5749.

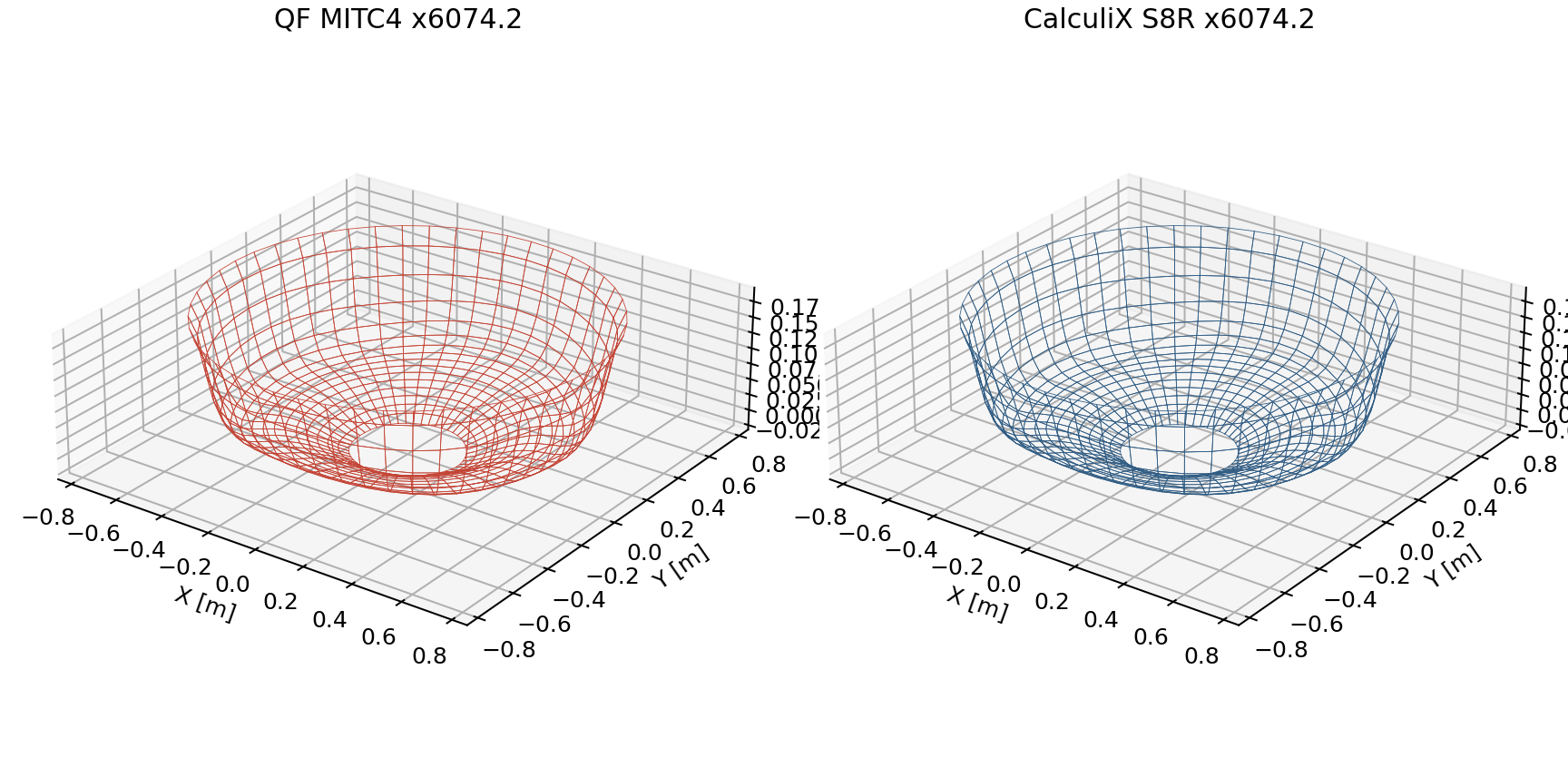

Panneau conique ajoure CalculiX. Empreinte SHA-256 : 912e3e8b1e1abf3d4453d1336a6931f2c1a4606fcbde9157444ee92d0f40150e.

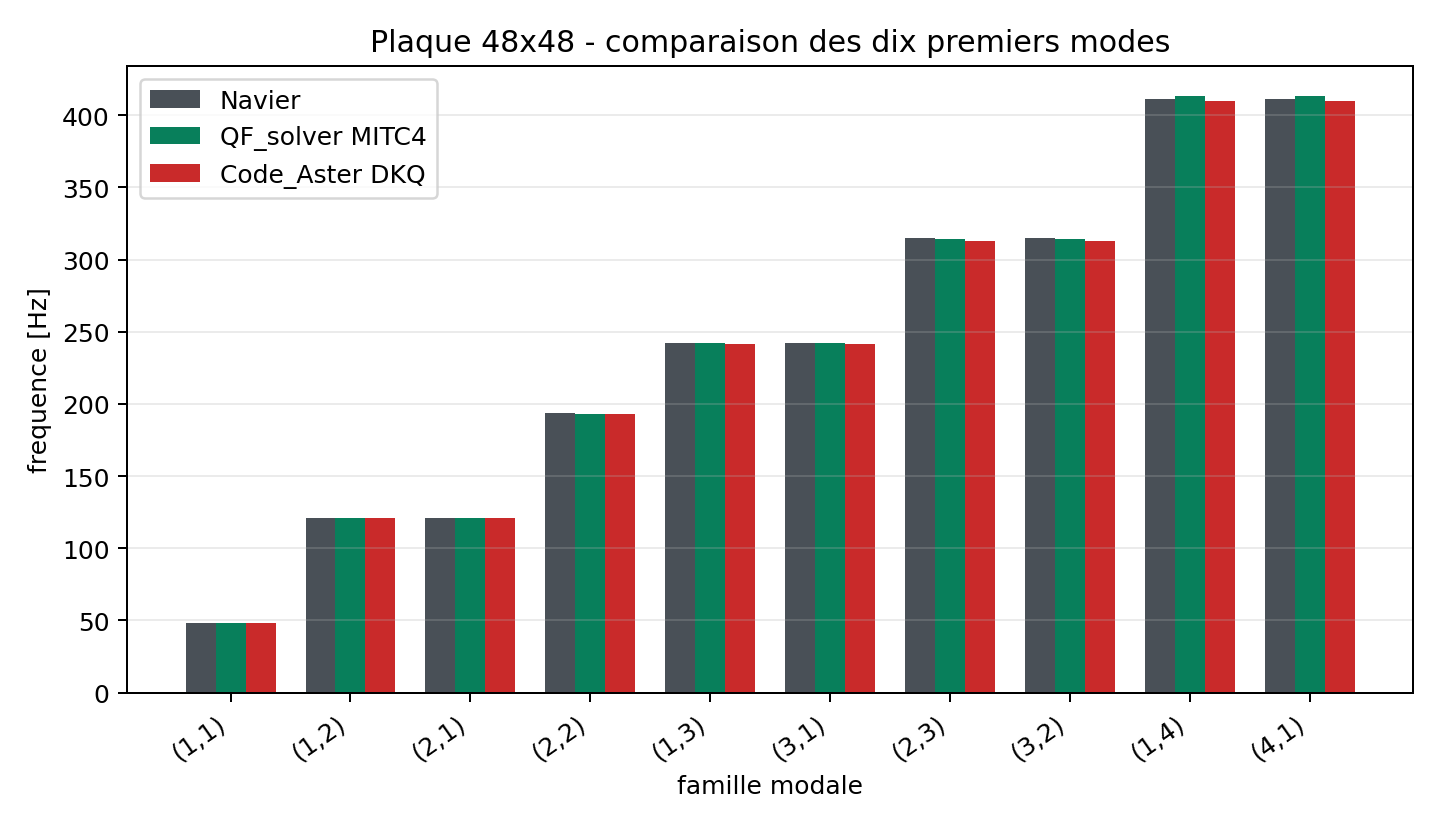

Frequences MITC4 et Code_Aster. Empreinte SHA-256 : d880cd9797997c3300c0eef7ef289e2f6e3eba6f126bca0674a44baca7d3c62e.

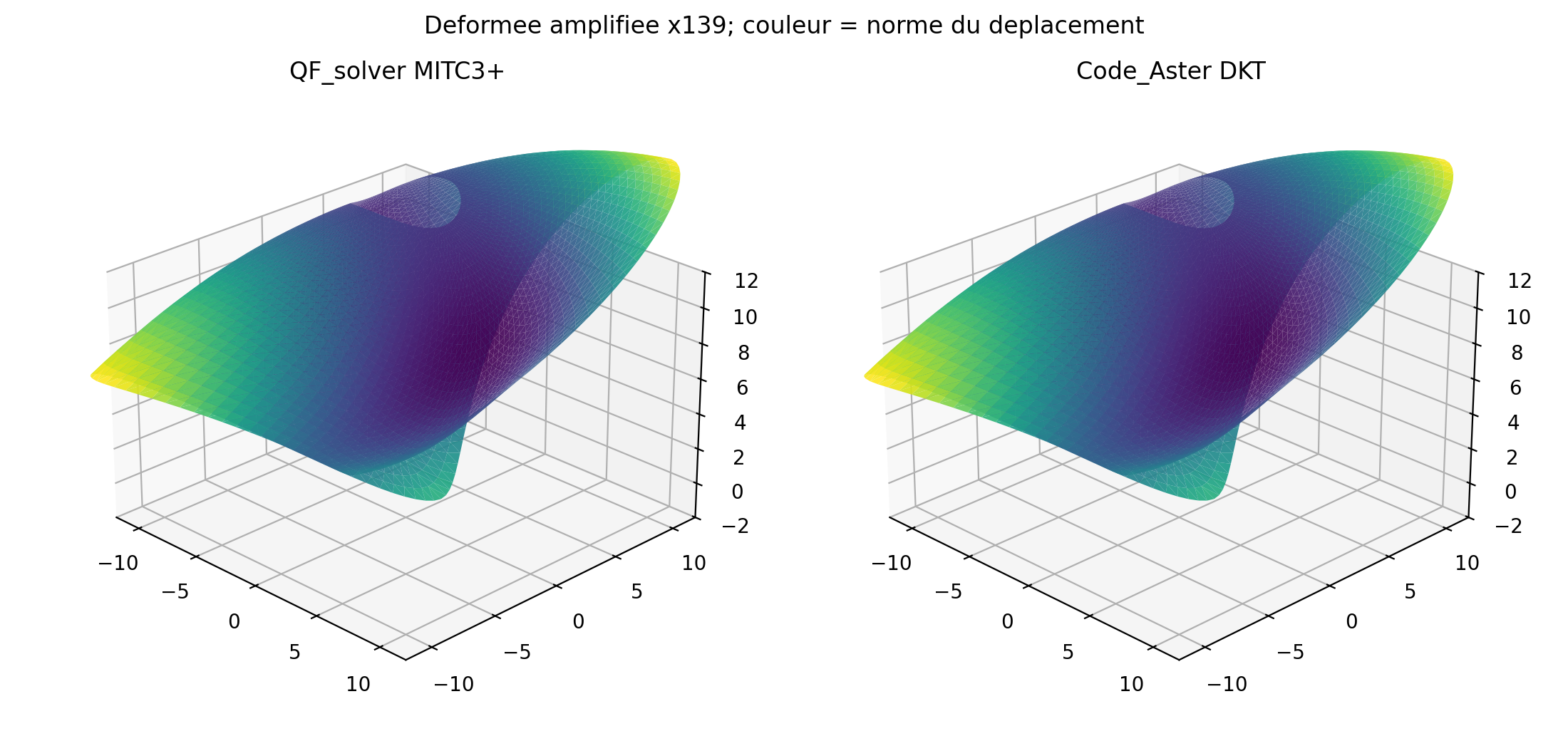

Hemisphere MITC3, vues QF_solver et Code_Aster. Empreinte SHA-256 : 8230fa9f036fd09120c1b2cd8b15eee942a3bad33fba1bc62a540de0d3763d76.

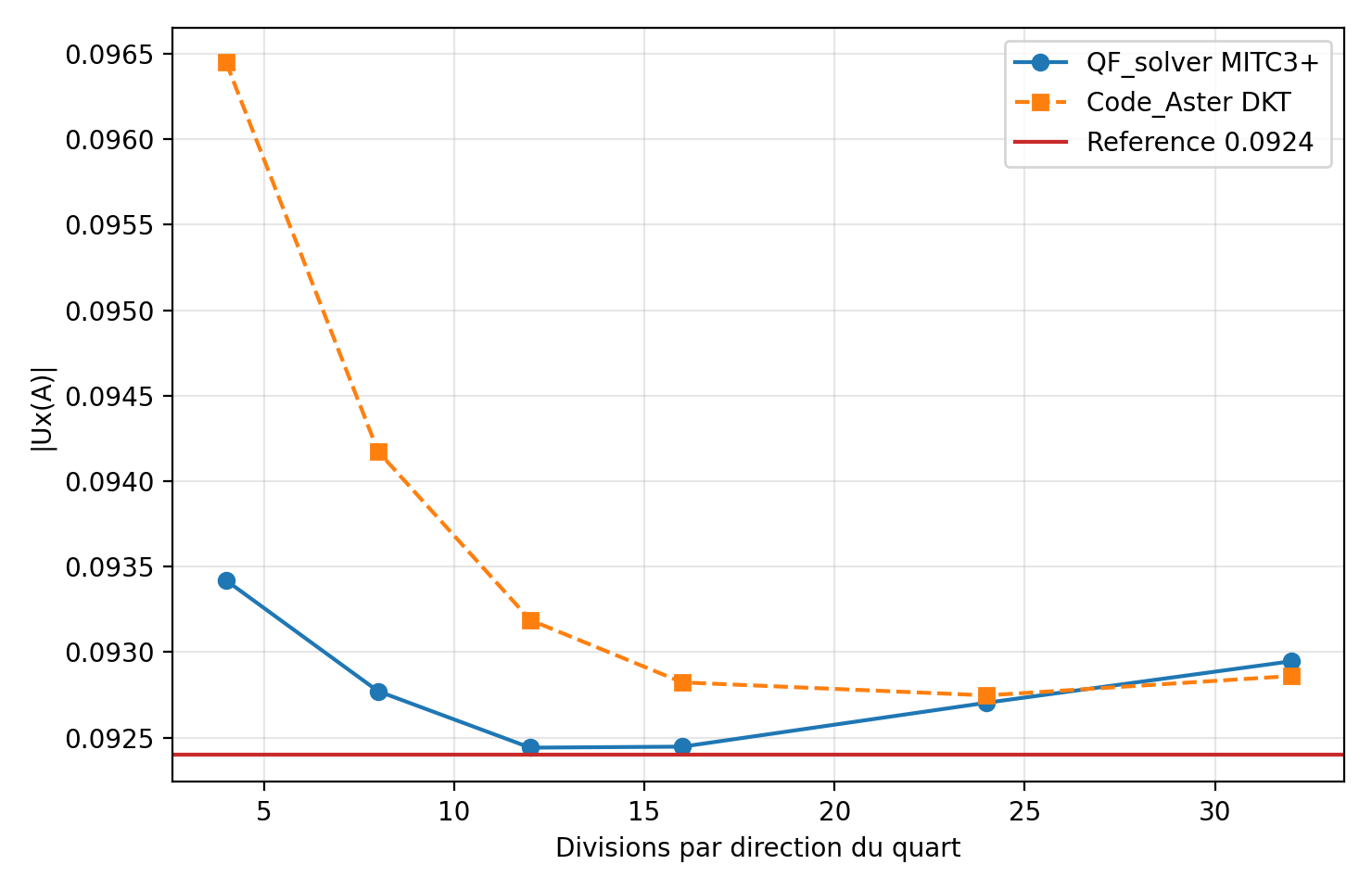

Convergence de l'hemisphere MITC3. Empreinte SHA-256 : 2a77ec2a35ba0966eca3e689ac72da4fcdd1e916b41c469615adaf7e2a97883d.

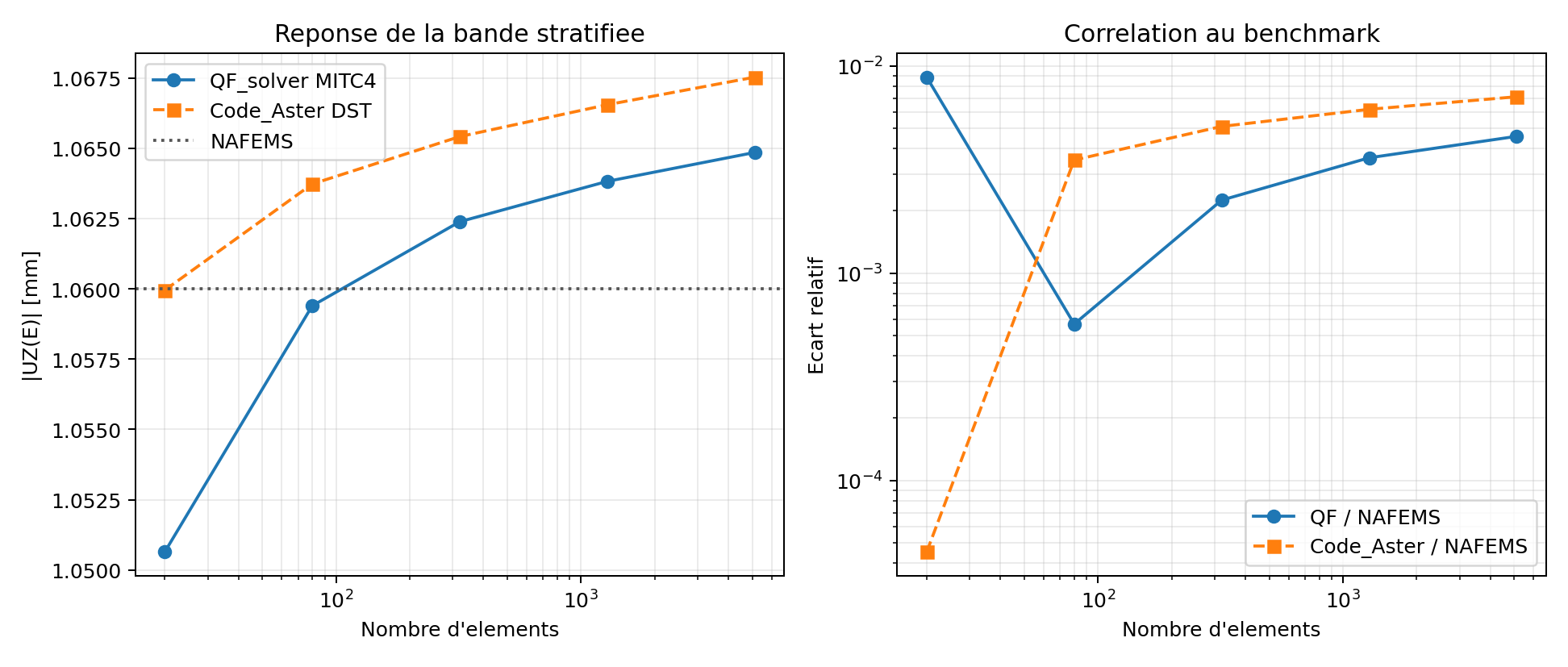

Convergence composite NAFEMS/Code_Aster. Empreinte SHA-256 : 3dfca83b0833bc7d94056b1eab88226816a01e1b306c01c7f9b786381844331f.

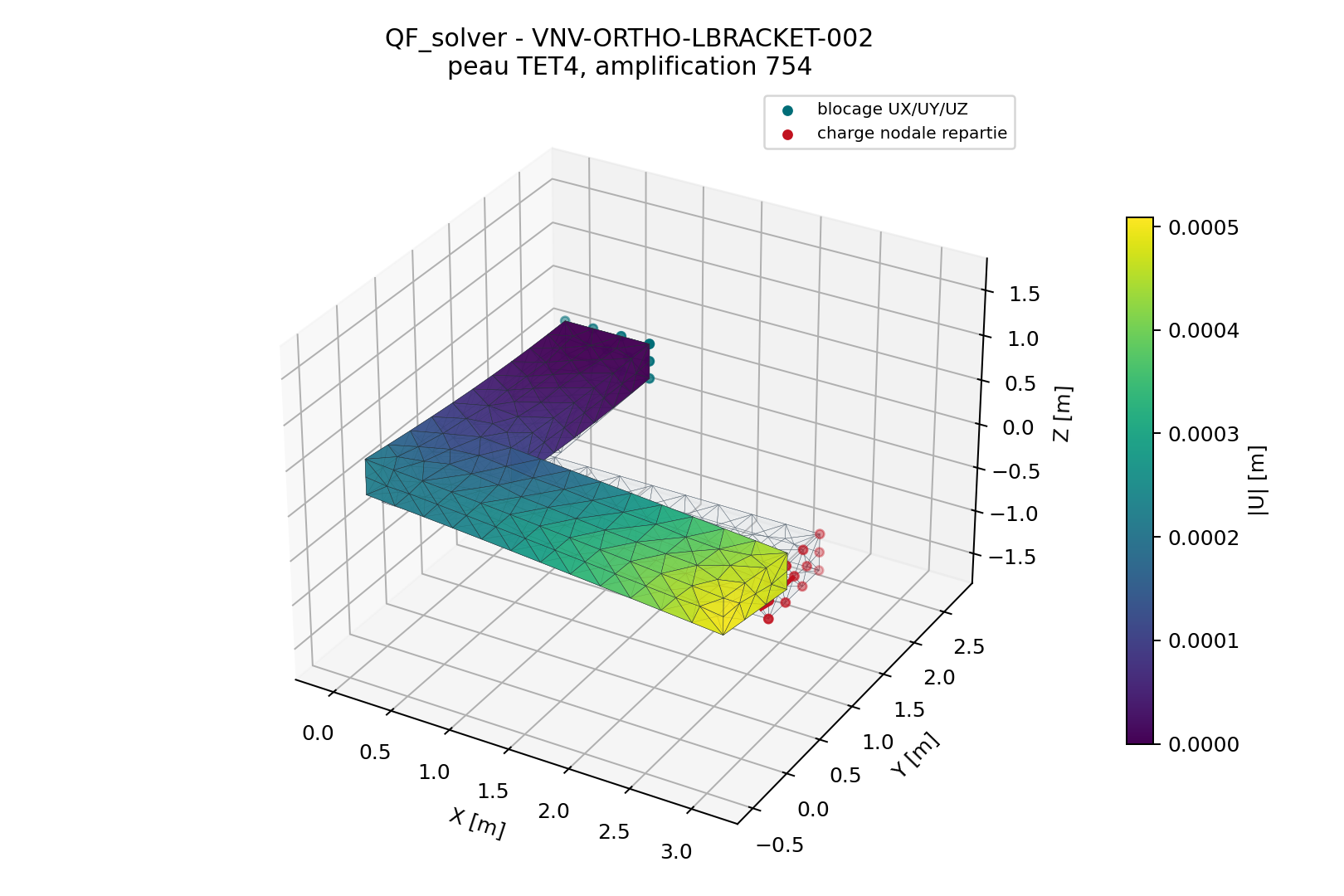

Equerre orthotrope QF_solver. Empreinte SHA-256 : df3ed2f05fe3dd100658eae27b362d556e91906d549056f6d40be809d5ad2d9f.

Equerre orthotrope Code_Aster. Empreinte SHA-256 : 3a18ce8e78cdab4876f7f20f7c3a975c091235579c728e64160fb780a7802cdf.

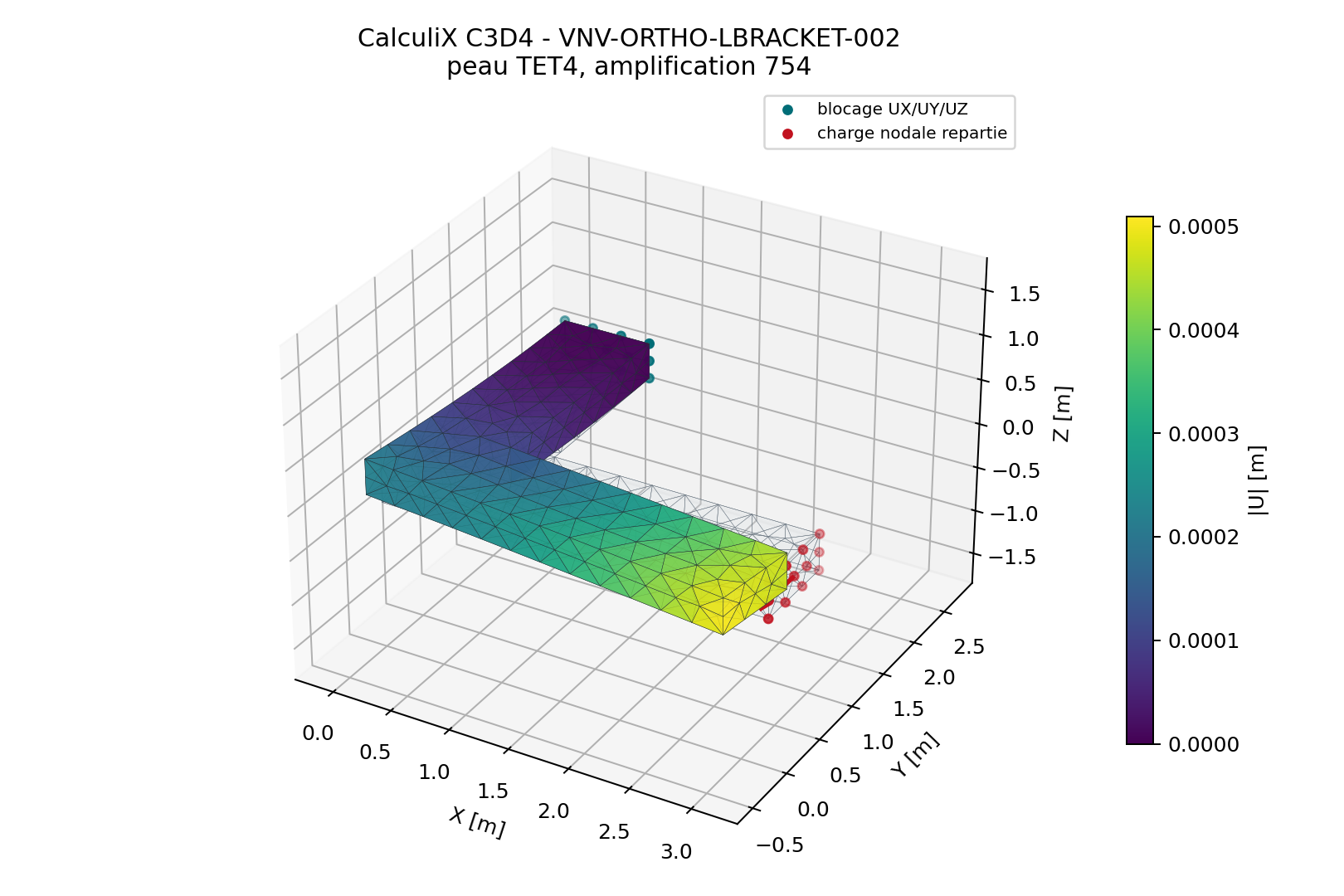

Equerre orthotrope CalculiX. Empreinte SHA-256 : e4f642beff0f8e4e9a160885ddfe9dc974f58f4ff6b571596334c93adcf156a2.

Contraintes Total-Lagrangian comparees a Code_Aster. Empreinte SHA-256 : 701e36818b0ba8b12644f70464e7f387599efd5fe8ae6df78c315784c76814d9.

Contact normal compare a Code_Aster. Empreinte SHA-256 : bfa3dd28ab41ab2e76b6083ed8fdd7078af12aa04ae9ec26cd50de442856c819.

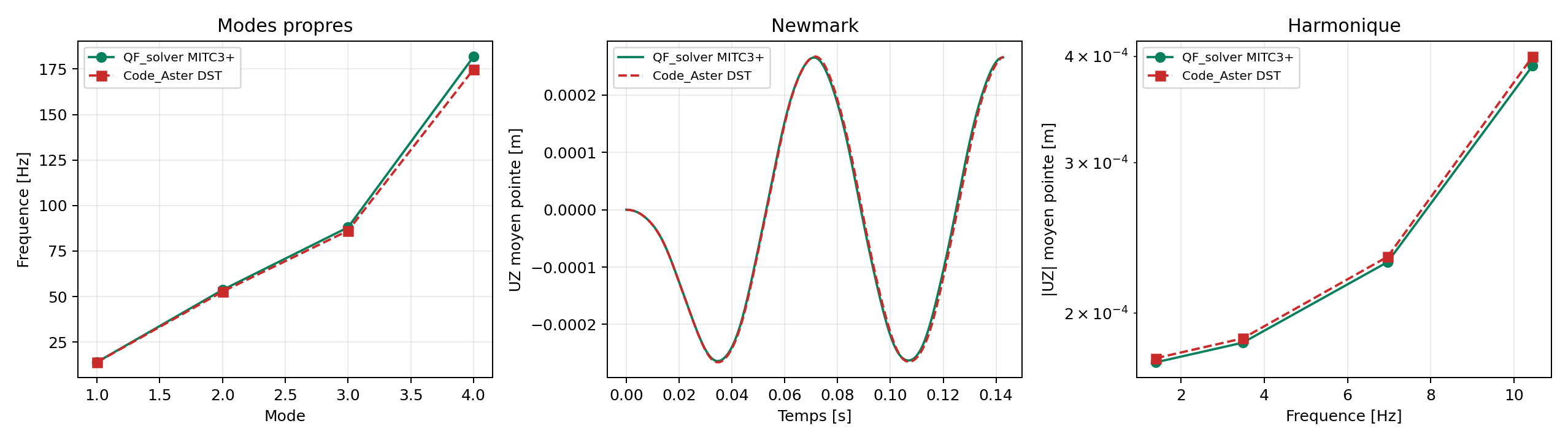

MITC3+ modal, Newmark et harmonique compares a Code_Aster DKT. Empreinte SHA-256 : de92d228e8134e5e1ebc80800a83479bda94efd7fe2c9612db8ead0faa9778fa.

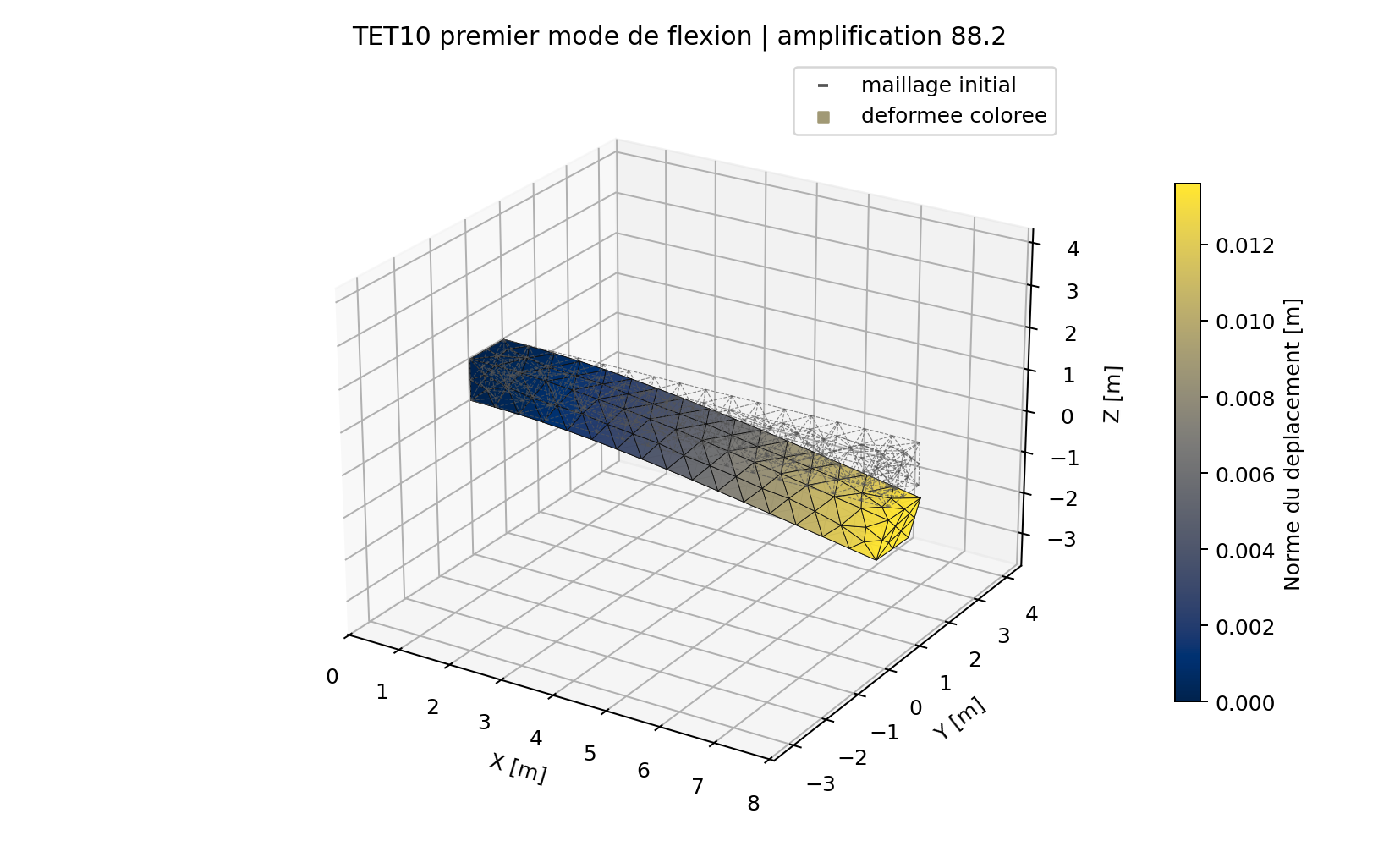

TET10 modal, Newmark et harmonique compares a Code_Aster TETRA10. Empreinte SHA-256 : d7a02003b8d23213b36c92c5808a88c86b0d343424cef66963ff41f74351a9f7.

BEAM2 transverse modal, Newmark et harmonique compares a Code_Aster POU_D_E. Empreinte SHA-256 : 283c62ac36c44ecf7169eaf1c7ea5aea52b59287d015180e7c7c75fa2f454957.

TET4 modal, Newmark et harmonique compares a Code_Aster TETRA4. Empreinte SHA-256 : 701e36818b0ba8b12644f70464e7f387599efd5fe8ae6df78c315784c76814d9.

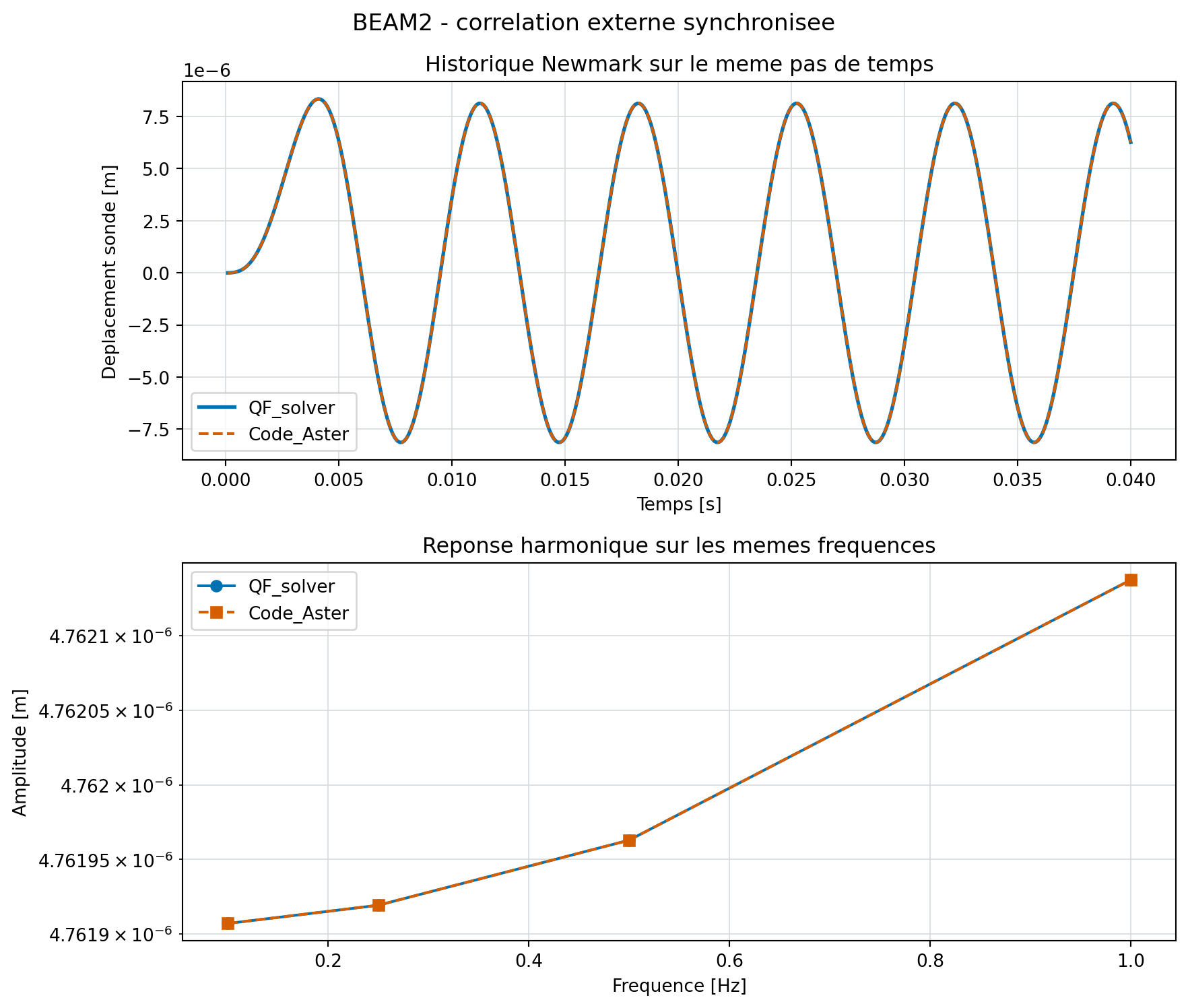

BEAM2: QF_solver et Code_Aster. Empreinte SHA-256 : 78c936387d1c39e1b3750514755f6e0a1e7cf36f424071a516653d73e9434907.

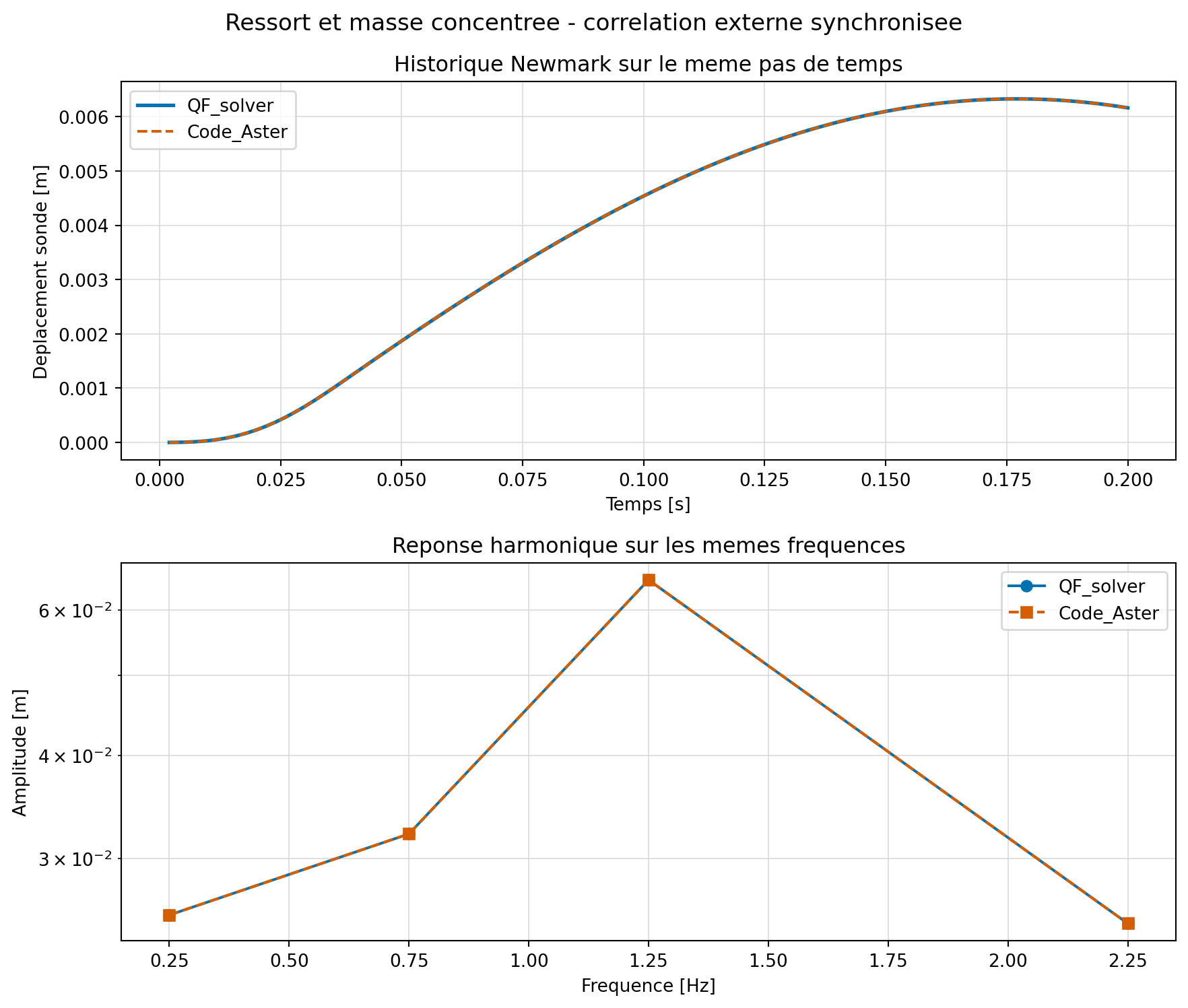

Ressort et masse concentree: QF_solver et Code_Aster. Empreinte SHA-256 : 93e30e9f5cf4efa0df79677c95f8e5219abd1c77281ad8e339cf6460931c0747.

Ecarts V&V maintenus ouverts

Ces ecarts ne bloquent pas la lisibilite du manuel, mais interdisent toute extrapolation de maturite.
